AFS SILK & SILK HA CARBON STABILISER - PRE-PREG HM & UHM CARBON

AFS SILK & SILK HA CARBON STABILISER - PRE-PREG HM & UHM CARBON

The Silk range of stabilisers has been developed in harmony with the entire foil, using the finest materials for an incomparable waveriding experience.

HIGHTLIGHTS

Easily recognised as the "Bumpy Foil"
Rides as Smooth as SILK
Adaptive design - PRONEFOIL-WINGFOIL-DOWWINDFOIL
Available as Standard or HA models for an incomparable Waveriding experience
100% Waveriding in design, while remarkably capable at Downwind and Freeride!
Supplied with Screws & cover


DIMENSIONS

SILK
Surface (cm2) Span (mm) Aspect Ratio Cord max (mm) Thickness max (mm) Construction Weight (kg) Screw size
132 300 6.8 58.8 7.1 UHM Carbon 0.1 M6x12
142 320 7.2 58 7 UHM Carbon 0.1 M6x12
152 340 7.6 57.3 6.9 UHM Carbon 0.1 M6x12
Compatible with All AFS fuselages

SILK PROGRAM
Wing foil waveriding / Surf foil / Sup foil / Downwind

SILK HA
Surface (cm2) Span (mm) Aspect Ratio Cord max (mm) Thickness max (mm) Construction Weight (kg) Screw size
135 380 11.9 43 6.5 HM Carbon 0.1 M6x12
145 405 11.3 43 6.5 HM Carbon 0.1 M6x12
155 430 10.6 43 6.5 HM Carbon 0.1 M6x12
Compatible with All AFS fuselages

SILK HA PROGRAM
Wing foil waveriding / Surf foil / Sup foil / Downwind

WARRANTY
This product comes with a three-year warranty, subject to our fair use policy.

TECH SPECS & TABLE OF USE

Choosing your AFS Stabiliser

CRUISER
The range is divided into 3 sizes - Small, Medium and Large.

This range of stabilisers offers a good balance between stability, glide, and manoeuvrability. Performance-oriented and accessible, its profile provides glide, while its light arrow and progressive dihedral ensure intuitive handling.

Small (S) 190
Medium (M) 220
Large (L) 245

This stabiliser covers a very wide range of uses in wing foil, surf foil, sup foil or even downwind.

The behaviour of the stabiliser is characterized by its smoothness and progressiveness. In wing or kite, you feel a comfortable flying sensation, combining mastery and potential.

This range is particularly well suited for our Performer, Flyer >2024 or Evo range, but also for our Advanced wings (Pure, Silk) which help to tame/calm the whole performance profile of these very high perfomance foils.

The choice of size will depend on your front wing and your practice. You will find a table on our website indicating the perfect choice by combining these two criteria.

PURE

Pure 145 and 150

The 145 has a flat dihedral, which will provide a lot of control, and the control will become even more important, naturally at high speeds. So, this is a great stabilizer for everything that will be racing, free race use. But also, for freeride performance, with high evolution speeds.

It can also be used in big waves, and everything that will really be… search for high evolution speed, and search for control in these evolution speeds.
It is particularly well suited for our Pure range but is also ideal for unleashing your Performer or Evo range.

The 150 stabiliser was developed with a dihedral and an arrow to provide manoeuvrability in roll and attack curves. So, a turning radius that will be much lower than the 145.

In the same way, it is mounted particularly well on our Pure range but will also be ideal for unleashing your Performer or Evo range.

Pure HA 135 and 165

Finally, the two Pure HA 135 and 165 are stabilisers with a higher aspect ratio. They will always provide more glide but also more stability. They are particularly suitable for downwind practice in combination with the Pure HA800 and Pure HA1100.


SILK

Whether in surf foil or wing foil, this range of stabilizers brings smoothness in direction changes and manoeuvres, to all our foils, which is quite incredible.

Silk 132, 142 & 152

On the SILK 132, 142, 152, the compact outline and the marked dihedral will allow to optimise the transitions from one rail to the other. At medium and high speed, they provide multiple changes of support with maximum fluidity thanks to the control provided by the bumps on the leading edge. The changing of turns in all directions becomes intuitive and with great ease.


SILK HA

Whether in surf foil or wing foil, this range of stabilizers brings smoothness in direction changes and manoeuvres, to all our foils, which is quite incredible.

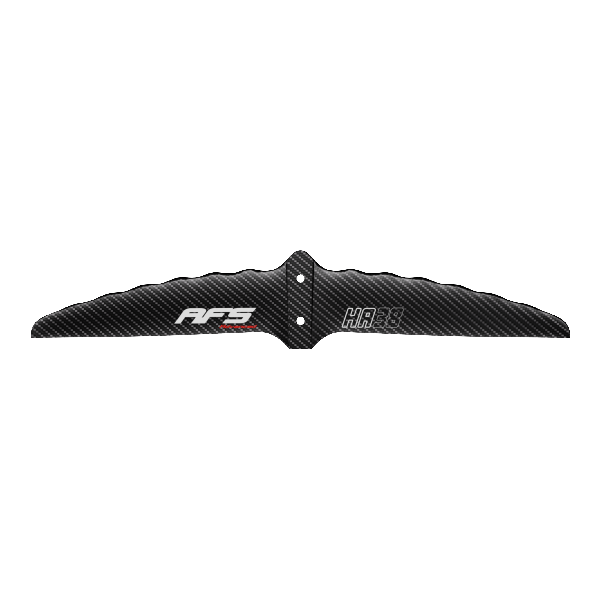

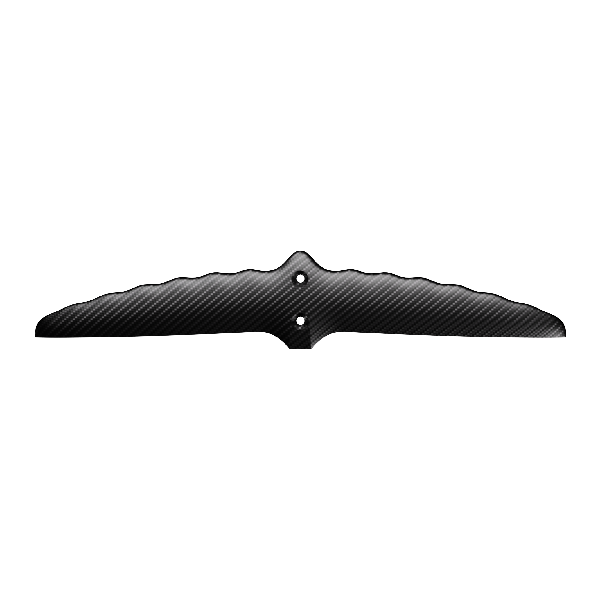

Silk HA38
Silk HA40
Silk HA43


These HA stabilisers express their full potential at low and medium speeds. They therefore facilitate the pumping and relaunch phases after manoeuvres.

The dihedral and outline provide very good manoeuvrability, ideal for carving at low and medium speed. The thin profile also gives very good gliding abilities at higher speeds or downwind.

These stabilisers are particularly well suited for the SILK range but also for all AFS front wing models. You will find a table on our website indicating the perfect choice by combining these two criteria depending on your practice.
